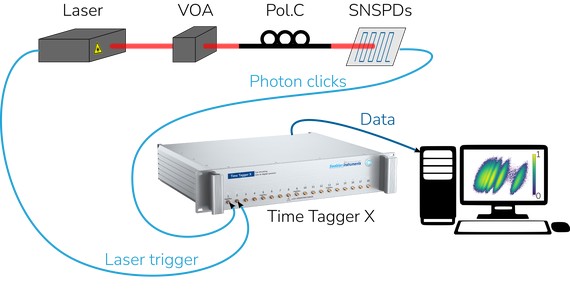

Figure 1. A schematic diagram illustrating a linear optics quantum information (LOQI) experimental setup. The diagram includes a laser source connected to an optical setup for photon manipulation, an 8-mode interferometer, detectors for photon clicks, and a Swabian Instruments Time Tagger X. The setup is linked to a computer for data analysis using the powerful API from Swabian Instruments, demonstrating the flow of photon signals and data processing for quantum experiments.
Linear optics quantum information (LOQI) is a branch of quantum information science that leverages photons—the fundamental particles of light—as carriers of quantum information by encoding qubits in their quantum states. By manipulating these photons with linear optical components such as beamsplitters and wave plates, researchers can perform quantum operations crucial to quantum computing, secure communication, and enhanced metrology. Photons are particularly well-suited to quantum communication due to their low decoherence over distances, setting LOQI apart from other quantum technologies that rely on atoms or superconducting circuits. This quality makes LOQI a central component in building scalable and practical quantum networks and information systems.
In addressing the need for secure and efficient information transmission, LOQI offers a distinct advantage over classical systems, which are susceptible to eavesdropping. Quantum communication protocols, like quantum key distribution (QKD), leverage LOQI’s properties to ensure secure data transmission based on the principles of quantum mechanics. Additionally, LOQI provides a photonic-based platform for quantum computing, enabling scalable and integrative solutions suitable for larger quantum networks and enhancing the potential of photonic quantum processing.
LOQI experiments typically involve creating photons and directing them through optical setups to manipulate their quantum states. Essential to these setups are single-photon detectors, such as single-photon avalanche photodiodes (SPADs) and superconducting nanowire single-photon detectors (SNSPDs), and precise timing electronics, such as Swabian Instruments’ Time Tagger, to track photon arrival times and measure correlations. Timing accuracy at picosecond or sub-nanosecond levels is critical in LOQI for examining quantum interference and entanglement characteristics. An additional critical capability is photon number resolution (PNR), which plays a pivotal role in these experiments. PNR, achieved through timing-based discrimination or the intrinsic multi-photon sensitivity of SNSPDs, allows researchers to detect and characterize multiphoton events. This capability enhances the fidelity of quantum measurements and is essential for investigating quantum interference, entanglement, and state reconstruction.
Figure 1 depicts a typical setup for linear optics quantum information experiments involving several key components and processes, each designed to generate, manipulate, and detect photons in a way that preserves and measures their quantum states. The setup includes a photon source, typically a laser at low power producing single photons or a nonlinear crysta generating entangled photon pairs through processes such as spontaneous parametric down-conversion (SPDC) or four-wave mixing (FWM). The photons are then directed through various linear optical elements, such as beamsplitters, polarizers, wave plates, and phase shifters, which enable precise manipulation of the photons’ polarization, phase, or path-based quantum states. After this, an interferometer, such as a Mach-Zehnder or a Hong-Ou-Mandel (HOM) interferometer, is often incorporated into the setup to observe quantum interference effects by splitting and recombining photon paths, leading to interference patterns that reveal information about the quantum state. At the end of the optical path, single-photon detectors, typically single-photon avalanche photodiodes (SPADs) and superconducting nanowire single-photon detectors (SNSPDs), are used to detect the arrival of single photons with very high quantum efficiency, low dark counts, and high timing resolution.
The photons’ arrival time has to be recorded with picosecond-level precision. This timing data is essential for analyzing time-correlated events, such as entangled photon pairs or photon coincidences, that verify quantum properties. Advanced time-to-digital converters (TDCs), like Swabian Instruments’ Time Tagger, allow for precise and simultaneous measurement of the photons’ arrival time from multiple detectors.
The critical hardware characteristics of linear optics quantum information experiments:
Swabian Instruments’ Time Tagger boasts the highest timing accuracy in the industry for accurate photon event timing and experiment accuracy and reliability:
Swabian Instruments' Time Tagger enables you to synchronize up to 8 units, each with 18 channels, to process signals from up to 160 single-photon detectors. The Time Taggers' software engine provides features such as flexible delay tuning on each channel independently so that the sync signal and all detected events can be properly time-adjusted for coincidence measurement.
Our advanced software engine facilitates precise synchronization across remote locations by utilizing a variety of disciplined oscillators, along with real-time data merging and processing capabilities. This enables the combination of synchronized data from distributed photon detection systems into a single data stream with picosecond precision. This functionality is essential for advanced applications such as quantum cryptography and long-distance entanglement distribution.
Swabian Instruments’ Time Tagger features fully independent and equivalent channels, enabling more flexible experimental configurations. This independence allows for avoiding constraints tied to start/stop channels, enhancing experimental flexibility and enabling more intricate setups.
Swabian Instruments provides extensive documentation, including specific tutorials on coincidence measurements. Step-by-step guides, example sequences, and application notes make configuring and integrating these devices straightforward, ensuring smooth operations and reducing setup times in advanced experiments.
Our powerful software engine enables you to simultaneously carry out multiple measurements on-the-fly just by using a few lines of code in your favorite programming language (Python, Matlab, LabVIEW, C#/C++, Mathematica, .NET…) or by using a few clicks in our GUI TimeTaggerLab. Run, visualize, and analyze your experiments like never before!
The first photonic quantum computer built in Paderborn, Germany! At Swabian Instruments, we’re proud to have enabled this breakthrough with our software-based Photon Number Resolution (PNR) on single SNSPDs!
Read morePhoton number resolution (PNR) is an enabling technique used to assign the number of photons involved in a detection event precisely. This technique leverages photon-number-resolving single-photon detectors as well as sophisticated signal analysis, and it is necessary for quantum cryptographyand quantum communication.
Read more
